Using Infrared Technology to Detect Electrical Faults

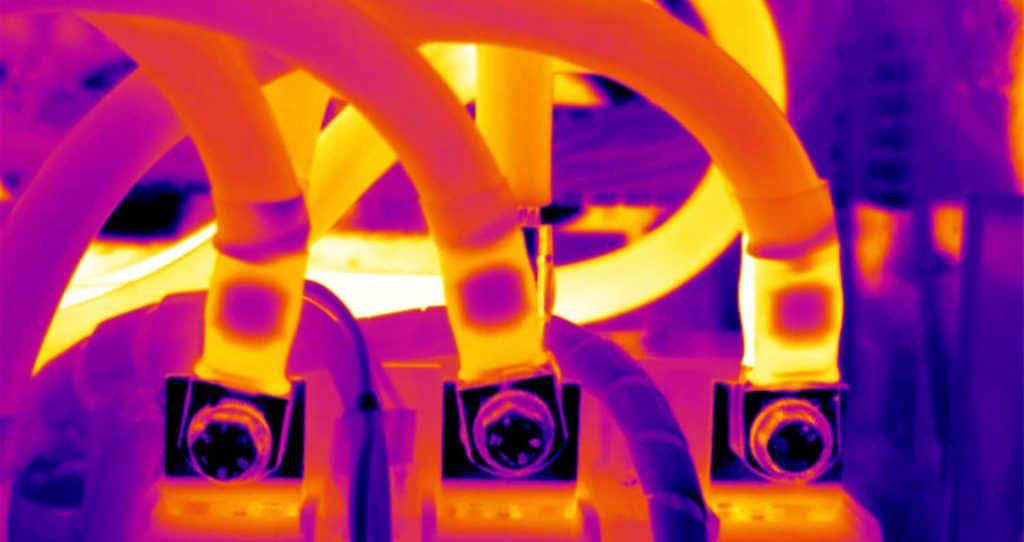

Thermal imaging surveys use specialist infrared cameras to visualise temperature variations in electrical equipment, revealing overheating components that indicate developing faults. Electrical connections, circuit breakers, contactors, cable joints and terminations all generate heat under normal operation, but excessive temperatures indicate increased resistance due to loose connections, corrosion or deterioration. Thermal imaging surveys can be conducted while electrical systems remain operational and under normal load, providing accurate assessment of actual operating conditions without requiring shutdowns or disconnections. This non-invasive approach identifies problems at an early stage when repairs can be planned and carried out during scheduled maintenance rather than as emergency responses to failures.
02
Preventing Costly Equipment Failures and Downtime
Electrical faults typically develop gradually, producing detectable heat signatures well before complete failure occurs. Thermal imaging identifies these developing problems, allowing intervention before equipment fails and causes operational disruption, fire or injury. The cost of planned repairs identified through thermal imaging is typically a fraction of emergency repair costs, particularly when business interruption, consequential equipment damage and emergency labour rates are considered. Thermal imaging also supports insurance and risk management by providing documented evidence of proactive electrical maintenance. Regular surveys reduce the frequency of unexpected failures and allow maintenance resources to be focused on components with actual rather than assumed deterioration.
03
Integrating Thermal Imaging into Maintenance Programmes
Thermal imaging is most effective when integrated into planned electrical maintenance programmes, with surveys conducted annually or biennially depending on the criticality and age of electrical systems. High-demand installations, older equipment and systems with histories of component failures benefit from more frequent thermal imaging. Surveys should ideally be conducted when electrical systems are operating under normal or peak load conditions, as faults are most evident when equipment is under stress. Thermal imaging is also valuable after installation of new equipment, following electrical modifications or when investigating the cause of equipment failures. Quantec provides professional thermal imaging surveys with detailed thermal images, temperature measurements and clear recommendations for any defects requiring attention, supporting proactive maintenance strategies and compliance with electrical safety standards.
